Fujikura FSM 90S+
Fusion Splicer

Fujikura FSM 90S+

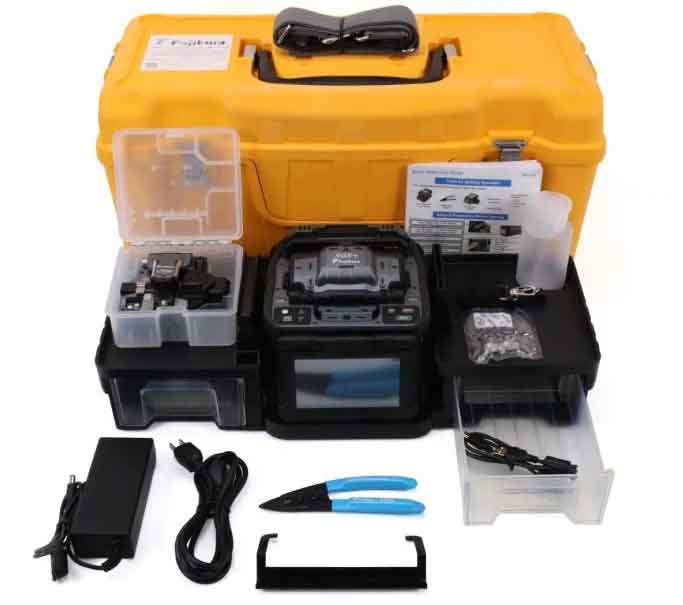

The Fujikura 90S+ is a core alignment fusion splicer, setting a new standard in the market for fusion splicing.

The 90S+ is packed with a whole host of new and enhanced features, specifically developed to enable faster splice cycle times with higher precision. One of main causes of high splice loss is bad cleave end face. The 90S+ fusion splicer analyzes the condition of both L and R cleave end faces and performs optimal fusion control. This new technology improves splice loss significantly and reduces the risk of re-installation.

Fusion is easily affected by changes in the environment. The 90S+ fusion splicer uses real-time fusion parameter control by analyzing the fiber’s brightness intensity during fusion. It contributes to stable, reduced splice loss. The faster automated features of the 90S+ fusion splicer reduce installation times. With this splicer, an operator can complete the entire splice process from splicing to heating without touching the 90S+ and only moving the fiber.

The fiber retention clamps support the automated operations. When the sheath clamps open automatically after splicing, the fiber retention clamps gently hold the spliced fiber to keep it from flying out. The retention clamps release when the fiber is lifted by the operator.

Fusion Splicer

Fujikura FSM 41S+

The Fujikua 41S+ is equipped with Fujikura Active Fusion Control Technology, which analyses the fiber image during fusion and controls the arc discharge accordingly.

The result is stable splice loss irrespective of the environment. The Fujikura 41S+ analyses the fiber image during fusion and controls fusion power according to the real-time condition of the fiber. This helps to minimize splice loss irrespective of the environment.This process also provides Warm Splice Image (WSI) technology. WSI analyses during the splice and provides loss estimation, even though the 41S+ is a clad alignment splicer.

Fujikura FSM 41S

It would help to prevent the case of “good loss estimation but bad actual loss”. The 41S+ monitors the blade condition of the CT50 cleaver via wireless communication. When the 41S+ judges that the blade is worn, it will command the CT50 to rotate the blade to a new position to ensure the CT50 keeps delivering consistent cleaving performance. A break in the pairing of wireless communication between the splicer and mobile phone can lock the splicer which prevents misuse and works as an anti-theft measure. Data management: The data management function retrieves data from the splicer and saves it to the cloud. This data can include the GPS data of a phone, which is useful for splicer operation management.

Fujikura FSM 90R
Fusion Splicer

Fujikura FSM 90R

The Fujikura 90R is a mass fusion splicer capable of splicing up to 16 fiber ribbons.

The 90R series is the first of its kind with an innovative user replaceable V-groove assembly which makes cleanliness and application versatility an issue of the past. Spare replaceable V-grooves are supplied as standard item in the 90R kit.The 90R features an easily replaceable V-groove system, which allows customers to install and remove the V-groove very quickly.

Almost all ribbon cables that have already been installed contain ribbons with fibers that have 250μm coating and therefore a 250μm fiber-to-fiber spacing. But with increasing cable densities, cable installations with 200μm coated fibers at a 200μm spacing is increasing. The 90R user can splice various types (and combination) of ribbon fiber by switching the V-groove spacing between 200μm and 250μm according to the type of optical fiber to be spliced.

Accumulation of dust and melted glass on the V-groove is one of the causes of high splice loss during fusion splicing. The 90R includes a spare set of 12 fiber V-grooves with electrodes installed and ready to splice as part of the standard package. These spare V-grooves are field replaceable, so user downtime is minimized. The electrodes are pre-stabilized, so electrode stabilization is not required. There are multiple ways to utilize the 90R carrying case. The 90R is ready to use just by opening the case, but it is also possible to use the 90R on top of the carrying case or only with the work tray depending on the work environment.
